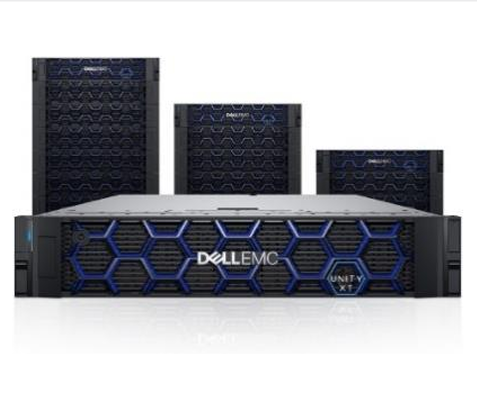

OEM Dell EMC Unity Xt380 Xt480 Xt680 XT 880 Sanswitch 6610 6620 All Flash Array

  • 1
  • 2
  • 3

Model Number : xt380 xt380f, xt480 xt480f, xt680 xt680f, xt880 xt880f

Place of Origin : Beijing, China

Packaging Details : New Original Packing

Supply Ability : 100 Piece/Pieces per Quarter

MOQ : 2 pieces

Brand Name : Dell

Private Mold : Yes

Products Status : Stock

Contact Now

Dell EMC Storage Server EMC_unity_xt380 Xt480 Xt680 XT 880 Sanswitch_6610 6620 All-Flash Array

Specification
380F/380
480F/480
680F/680
880F/880
Min/Max Drive Count
Min. 6 SSDs or 10 HDDs /
Max. 500
Min. 6 SSDs or 10 HDDs /
Max. 750
Min. 6 SSDs or 10 HDDs /
Max. 1000
Min. 6 SSDs or 10 HDDs /
Max. 1500
Array Enclosure
A 2U Disk Processor Enclosure (DPE) with twenty-five 2.5” drives
Drive Enclosure (DAE -
Disk Array Enclosure)
All-Flash (F) models support 2.5” drives in the 2U twenty-five drive tray.
Hybrid models support 2.5“drives in 2U twenty-five drive and 3.5” drives in 3U fifteen drive trays.
Standby Power System
Dell Unity systems are powered by 2 power supplies (PS) per DPE/DAE. Each power supply can provide power to
the entire module if the peer PS has been removed or is faulted. DPE power during a power failure is provided by a
Battery Back Up (BBU) module. BBU is located within the SP enclosure and provides power to a single module
(power zone)
RAID Options
1/0, 5, 6
CPU per Array
2 x Intel CPUs, 12 cores
per Array, 1.7GHz
2 x dual-socket Intel
CPUs, 32 cores per Array,
1.8GHz
2 x dual-socket Intel
CPUs, 48 cores per Array,
2.1GHz
2 x dual-socket Intel CPUs
64 cores per Array,
2.1GHz
System Memory/Cache
per Array
128 GB
192 GB
384 GB
768 GB
Max FAST Cache
Array*
Up to 800 GBs
Up to 1.2 TBs
Up to 3.2 TBs
Up to 6.0TBs
Total CacheA
Up to 928 GBs
Up to 1.39 TBs
Up to 3.58 TBs
Up to 6.76 TBs
Max Mezzanine cards per
ArrayB
NA
2
2
2
Max IO Modules
ArrayC
4
4
4
4
Embedded SAS IO Ports
per Array
4 x 4 lane 12Gb/s SAS
ports for BE (back end)
Connection
4 x 4 lane 12Gb/s SAS
ports for BE Connection
4 x 4 lane 12Gb/s SAS
ports for BE Connection
4 x 4 lane 12Gb/s SAS
ports for BE Connection
Spec Sheet
380F/380
480F/480
680F/680
880F/880
Optional SAS IO
Array
NA
8 x 4 lane or 4 x 8 lane
12Gb/s SAS ports (for BE
Connection)
8 x 4 lane or 4 x 8 lane
12Gb/s SAS ports (for BE
Connection)
8 x 4 lane or 4 x 8 lane
12Gb/s SAS ports (for BE
Connection)
Base 12 Gb/s SAS BE
Buses per Array
2 x 4 Lane
2 x 4 Lane
2 x 4 Lane
2 x 4 Lane
Max 12 Gb/s SAS BE
Buses per Array
2 x 4 Lane
6 x 4 Lane; or 2 x 4 lane
and 2 x 8 lane
6 x 4 Lane; or 2 x 4 lane
and 2 x 8 lane
6 x 4 Lane; or 2 x 4 lane
and 2 x 8 lane
Max FE (front end) Total
Ports per Array (all types)
20
24
24
24
Max Initiators per Array
1,024
2,048
2,048
4,096
Max FC Ports per Array
20
16
16
16
Embedded 10GbaseT
Ports per Array
NA
NA
NA
NA
Embedded CNA
Array
4 ports: 8/16 Gb FCD ,
10Gb IP/iSCSI, or 1Gb
RJ45
NA
NA
NA
1 Gbase-T/iSCSI Max
Total Ports per Array
20
24
24
24
10/25 GbE/iSCSI Max
Total Ports per Array
20 – 10GbE
16 – 25GbE
24
24
24
Max Raw CapacityE
2.4 PBs
4.0 PBs
8.0 PBs
16.0 PBs
Max SAN Hosts
512
1,024
1,024
2,048
Max Number of Pools
20
30
40
100
Max Number of LUNs
Array
1,000
1,500
2,000
6,000
Max LUN Size
256 TB
256 TB
256 TB
256 TB
Max File Systems per
Array
1000
1500
2000
4000
Max File System Size
256 TB
256 TB
256 TB
256 TB
Max attached snapshots
per Array (Block)
1000
1500
2000
6000
IOPSF (All Flash Models
380F – 880F)
up to 600K
up to 1.68M
up to 2.36M
up to 2.56M
OS Support
See the Dell Simple Support Matrix on dell.com
380F/380
DPE 25 2.5” SFF
drives and four
IO modules
480F/480
DPE 25 2.5” SFF
drives and four
IO modules
680F/680*
DPE 25 2.5” SFF
drives and four
IO modules
880F/880
DPE 25 2.5” SFF
drives and four
IO modules
POWER
AC Line Voltage
100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
AC Line Current
(operating maximum)
10.07 A max at 100 VAC;
5.04 A max at 200VAC
10.6 A max at 100 VAC;
5.3 A max at 200VAC
11.72 A max at 100 VAC;
5.86 A max at 200VAC
14.41 A max at 100 VAC;
7.2 A max at 200VAC
25 X 2.5” Drive DAE

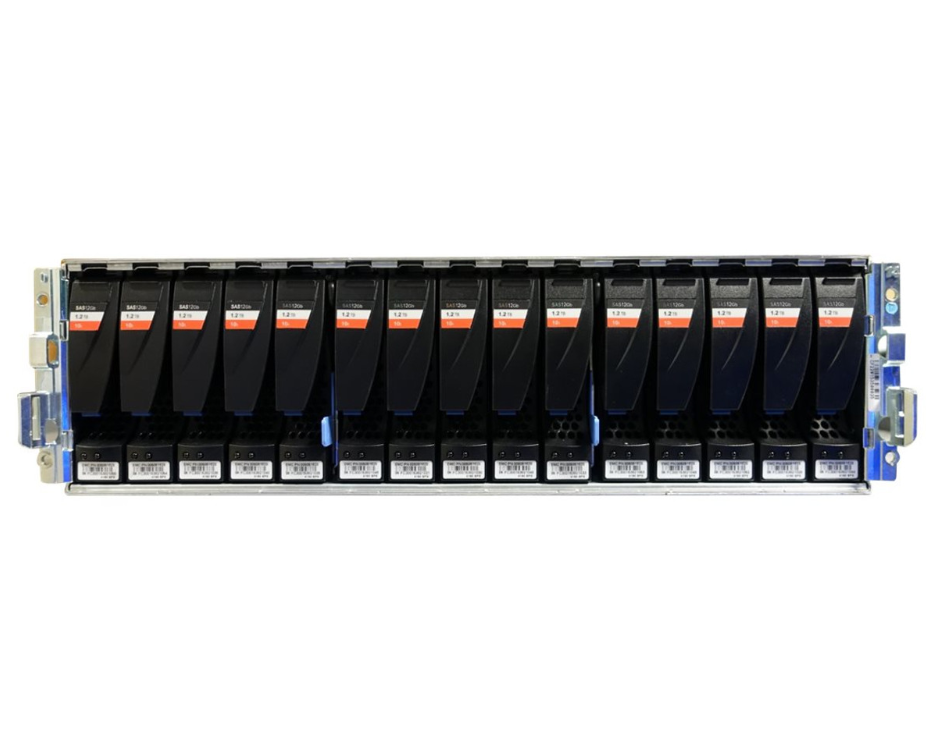

15 X 3.5” Drive DAE
POWER
AC Line Voltage
100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
AC Line Current
(operating maximum)
4.50 A max at 100 VAC,
2.40 A max at 200 VAC
2.90 A max at 100 VAC,
1.60 A max at 200 VAC
Power Consumption
(operating maximum)
453.0 VA/ 432.0 W max at 100 VAC
485.0 VA/ 427.0 W max at 200VAC
287.0 VA/ 281.0 W max at 100 VAC
313.0 VA/ 277.0 W max at 200VAC
Power Factor
0.95 minimum at full load, @ 100V/200V
0.90 minimum at full load, @ 100V/200V
Heat Dissipation
(operating maximum)
1.56 x 106 J/hr, (1,474 Btu/hr) max at 100 VAC
1.54 x 106 J/hr, (1,457 Btu/hr) max at 200 VAC
1.01 x 106 J/hr, (959 Btu/hr) max at 100 VAC
1.00 x 106 J/hr, (945 Btu/hr) max at 200 VAC
In-rush Current
30 Apk “cold” per line cord, at any line voltage
30 A max “cold” for ½ line cycle, per line cord at 240
VAC
Startup Surge Current
40 Apk “cold” per line cord, at any line voltage
25 Amps peak max per line cord, at any line voltage
AC Protection
15 A fuse on each power supply, single line
10 A fuse on each power supply, single line
AC Inlet Type
IEC320-C14 appliance coupler, per power zone
Ride-through Time
12 ms minimum
30 ms minimum
Current Sharing
± 5 percent of full load, between power supplies
Droop Load Sharing
WEIGHT AND DIMENSIONS
Weight kg/lbs
Empty: 10.0/22. 1
Full: 20.23/44.61
Empty: 14.5/32
Full: 30.8/68
Vertical size
2 NEMA units
3 NEMA units
Height cm/inches
8.46/3.40
13.33/5.25
Width cm/inches
44.45/17.5
44.45/17.5
Depth cm/inches
33.02/13
35.56/14

OEM Dell EMC Unity Xt380 Xt480 Xt680 XT 880 Sanswitch 6610 6620 All Flash Array
OEM Dell EMC Unity Xt380 Xt480 Xt680 XT 880 Sanswitch 6610 6620 All Flash Array
Packing & Delivery
New Original Packing
